QTAFI scanner

QTAFI scanner is a tool for automatic data capture of paper questionnaires written by Martin Guist (Kassel, Germany). It is an open source project and can be used under the GPL.

Download the programme (scanner_QTAFI_install.exe, 14 MB)

image of the handbook

Tamara Arutyunyants (University Kassel, Germany) has written a handbook which helps to learn the use of the programme.

Download the handbook (scanner_QTAFI_handbook_2011.pdf, 3.6 MB)

Excerpt from the handbook:

2. Scanning paper questionnaires

2.1 Preparation for scanning

Before starting working with blank and filled-out paper questionnaires, they should be scanned.
Every filled-out paper questionnaire has its ordinal number (ID), which is indicated in the upper right corner. It is recommended to scan the questionnaires in the order they are following.

2.1.1 Cutting paper questionnaires

The binding part of paper questionnaires should be cut with the help of a cutter in order to bring it in the right format and be able to scan all the pages automatically. The cutter is set on A4 format. After cutting the questionnaire and before scanning it, the last pages containing no data relevant for the analysis are to be removed. To such pages refer, if applicable: page with gratitude for cooperation, list with fields of study, etc.

2.1.2 Opening the relevant file

Before scanning questionnaires the relevant folder is to be opened where the blank questionnaire as well as filled-out questionnaires of all universities are going to be saved. The name of the folder is optional. Below is the example of the folder name used in INCHER. This folder is named with the year of the surveyed cohort. Under this folder another folder is created with the name "_PAPER". Within the folder "_PAPER", new folders are opened with the names of universities from which the questionnaires are. In these folders all respective scanned filled-out questionnaires are to be saved.
Within a folder of a particular university another sub-folder is created with the name "_blank". In the sub-folder "_blank" a blank questionnaire, the created scan mask and verified data are saved.

2.2 Scanning paper questionnaires

To scan paper questionnaires there is no need for a special scanner that is used primarily in copy shops. For example, a scanner Canon DR-4010C, which is shown on the picture, is used at INCHER for scanning paper questionnaires.

2.2.1 Settings of a scanner


Before scanning paper questionnaires it is important to do some basic scanning settings such as: resolution, scan color mode, brightness, contrast and scanning sides.

Resolution determines image quality; it should be set on 200 dots per inch (dpi). 300 dpi is also possible and even better; however it increases the size of the files to a high extent.
What is very important is that you do not change the resolution during the whole process, i.e. during the scanning both blank and filled out questionnaires.
Scan color mode - black and white.
Brightness and contrast depend on the paper that is used for questionnaires, whether it is a bit dark or bright. When setting the brightness and contrast make sure that the given by respondents answers are visible upon scanning.
It is advised to scan multiple images to separate files. For this choose the option "multiple pages to a single file" and indicate the number of pages per questionnaire in the settings. This will allow a scanner to scan files and allocate the given number of pages to one file. It is important to place the questionnaire pages on a scanner in a correct order so that the file with a questionnaire contains all relevant pages of a questionnaire in a sequential order.
As questionnaires are printed out as double-sided they should be scanned as double-sided as well. In the option "scanning sides" choose a duplex (double-sided) scanning.


2.2.2 Tiff file - save type file


Scanned files should be saved as tiff files (*.tif) - Tag Image File Format, a widely used format for storing image data. Each scan represents a different image (or tiff file); however, the images can be concatenated to create one large image (file) with multiple pages (a multi-page tiff file). In this case all pages together form a single document.
For facilitation of the work and preventing the loss of scanned questionnaire pages it is recommended to save images as multi tiff files, e.g. store all pages of a questionnaire in one file. This can be done with the help of the option of a scanner "multiple pages to a single file" described above in the section settings of a scanner.

2.2.3 Name of a tiff file


The name of a file of a filled-out questionnaire should comprise the code of a university from which the questionnaires are, if relevant the code of a course degree as well as the ID of a questionnaire.
Code of a university: The institution which is responsible for receiving all the questionnaires and working with them should create a code for each particular university. A code can consist of an ordinal number or a short version of a university name.
If there are variations between the questionnaires with regard to the course degree, a code should be created for different course degrees. A code can consist of an ordinal number. Below is an example of the codes for some degree courses applied in INCHER. The codes below range from 1 to

1 - General subjects and Bachelor and Master degrees; 2 - Law;
3 - Teaching degree; 4 - Medicine; 5 - PhD.


Underline is followed by the code of a university and if relevant, code of a course degree.

Besides the codes of a university and a course degree, it is advised to provide the ID number of a scanned questionnaire. The number should consist of four digits. If the ID of a questionnaire is 1, the number 1 is to be followed by three zeros, e.g. 0001, 0002…, 0015…, 0143, etc.

Thus, the tiff file of the sample questionnaire in this handbook is named: Uni XXX_0001, where Uni XXX is the code of a university and 0001 is the ID of the first questionnaire.

3. QTAFI-Scanner / Introduction to the Scan-Mask

3.1 Definition

What is the QTAFI-Scanner?

The QTAFI-Scanner1 is a tool for computer-aided detection of paper questionnaires. The QTAFI-Scanner recognizes the relevant data from the scanned filled-out questionnaires and adds them together to a record. Before, however, the QTAFI scanner can fulfill this function the users must create appropriate scan masks.
What is the Scan-Mask?

A scan mask defines the fields from which the QTAFI scanner extracts its data. The mask defines - on the simple principle of a template - page by page, which sections of a paper questionnaire should be tested for relevant answers.
The QTAFI scanner does not certainly automatically recognize which characters from the questionnaires were preprinted and which characters were handwritten by the respondents. It can only determine the proportion of pixels in a given field, infer from the (non-) presence of characters and translate this information into numbers. Therefore it rests on the user to detect the relevant responses in the scan masks.
Conditions

The QTAFI scanner can be installed on your own computer by running the application "Install scanner.exe".

The definition of scan masks must in each case be carried out at the blank questionnaire. As it was mentioned above, the tiff files of questionnaires are to be stored in the subfolder _blank of each university. In addition, each of these sub-folders should contain a specific for a higher education
1 QTAFI ("Questions, Tables and Figures") is a computer-aided system for the management of surveys. Refer

3.2 Opening the QTAFI scanner

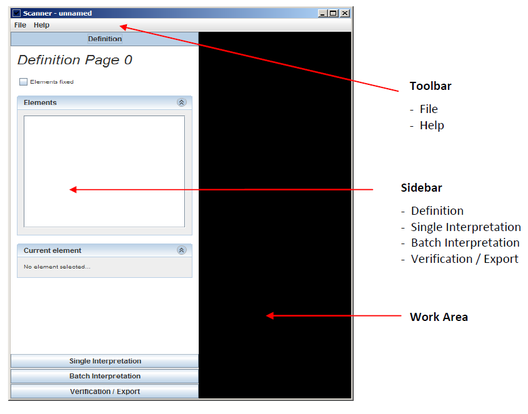

The opened QTAFI scanner - firstly without the data - is composed of three elements: (1) a toolbar, (2) a sidebar with a number of tabs and (3) a black work area.

The opening screen: assign your questionnaires.

QTAFI: first screen


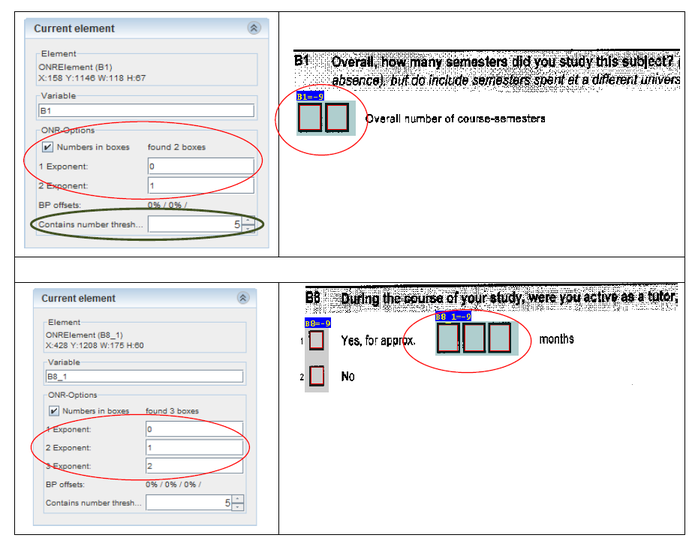

Definition of variables

 QTAFI: forms definition
